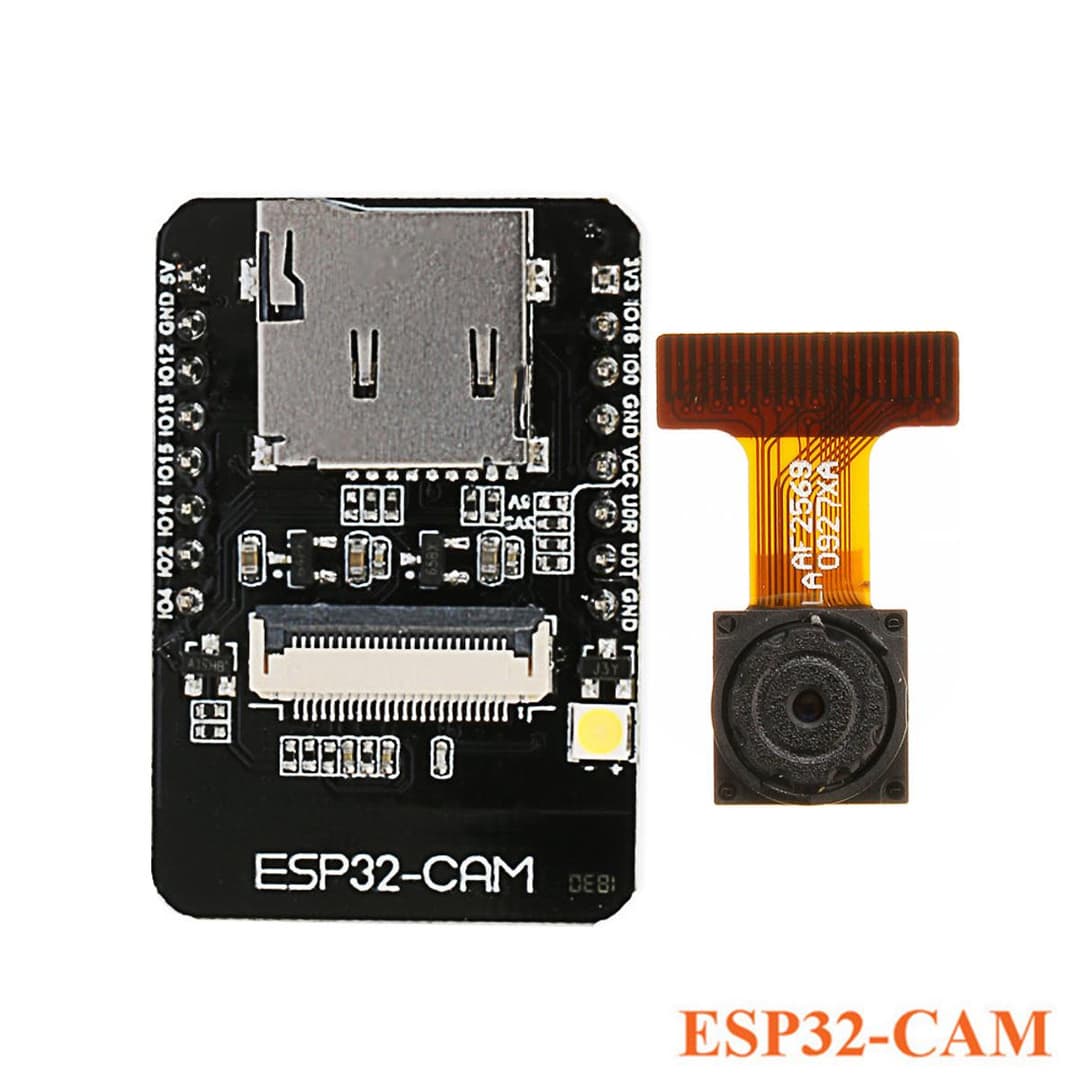

ESP32-CAM WiFi + Bluetooth Camera Module Development Board

Capture, Connect, and Create with Cutting-Edge Technology

Elevate your IoT projects with the ESP32-CAM WiFi + Bluetooth Camera Module Development Board, now available at Robogearbd.com! This advanced development board combines the powerful ESP32 microcontroller with built-in WiFi and Bluetooth capabilities, along with a high-resolution camera. Perfect for building smart surveillance systems, wireless camera applications, and AI projects, the ESP32-CAM offers unmatched versatility and performance in a compact package.

Why Choose ESP32-CAM?

High-Resolution Camera: Integrated OV2640 2MP camera for sharp and clear image capturing.
Dual Connectivity: Built-in WiFi and Bluetooth for seamless wireless communication.
AI-Ready: Compatible with AI and machine learning projects for face detection and recognition.
Compact and Versatile: Small form factor, perfect for space-constrained applications.
Cost-Effective Solution: A powerful and affordable option for advanced IoT and camera projects.

Product Specifications

Specification	Details
Microcontroller	ESP32-S
Operating Voltage	3.3V
WiFi Standards	802.11 b/g/n
Bluetooth	Bluetooth 4.2 BLE
Camera	OV2640 2MP
Image Resolution	1600 x 1200 (UXGA)
Flash Memory	4 MB
RAM	520 KB SRAM
External Storage	Supports microSD card (up to 4GB)
GPIO Pins	9 (multipurpose)
Interfaces	UART, SPI, I2C, PWM, ADC, DAC
Clock Speed	240 MHz
USB Interface	No direct USB, requires FTDI or similar for programming
Dimensions	27 x 40.5 x 4.5 mm
Weight	Approximately 10 grams

How to Get Started?

Power Up the Module: Use a 5V power source or connect an FTDI programmer to the ESP32-CAM's GND, 5V, U0R, and U0T pins. Ensure the FTDI programmer is set to 3.3V for safe operation.
Install the Required Software: Download and install the Arduino IDE on your computer. Add the ESP32 board support by navigating to the Boards Manager and searching for "ESP32".
Connect and Configure: Connect the ESP32-CAM to your computer using the FTDI programmer. In the Arduino IDE, select "AI-Thinker ESP32-CAM" as the board type, set the correct COM port, and choose the appropriate programmer.
Upload Sample Code: Open a sample sketch from the File > Examples > ESP32 menu in the Arduino IDE, such as the "CameraWebServer" example. Configure the WiFi settings in the code by entering your network's SSID and password.
Programming and Debugging: Press the ESP32-CAM's RESET button after uploading the code. Open the Serial Monitor (baud rate: 115200) to see the IP address assigned to your ESP32-CAM. Access this IP address in a web browser to view the live camera feed.
Explore Further: Experiment with additional functionalities like face detection, image capture, and Bluetooth communication by exploring various examples and libraries available online.

Kickstart your IoT and camera projects with the ESP32-CAM WiFi + Bluetooth Camera Module Development Board. Visit Robogearbd.com to purchase and start building innovative solutions today!
